AniTa for the Web is a version of April System Design's AniTa terminal emulator that is written in 100% Java and primarily designed for use in an Internet / Intranet environment.
AniTa is the terminal emulator that gives new life to your text based applications on platforms such as UNIX, Linux and VAX. AniTa makes your text based application look as if they were written for a windowing environment with a graphical user interface (GUI). It gives you mouse, 3-D box attributes, color support and adds a graphical touch to your character based applications. All this helps extend the life of your text-based solutions.
AniTa supports a wide range of terminal emulations including DEC VT100, VT220, VT320, ANSI, Wyse60, and SCO Console emulations.

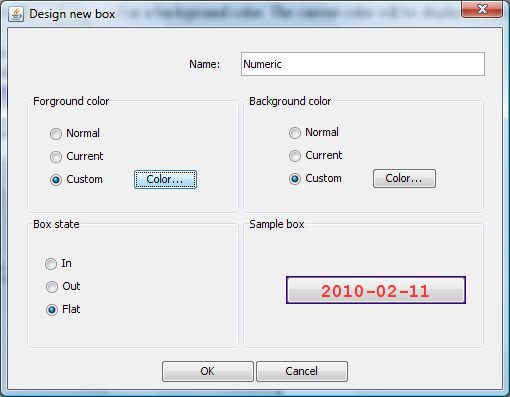

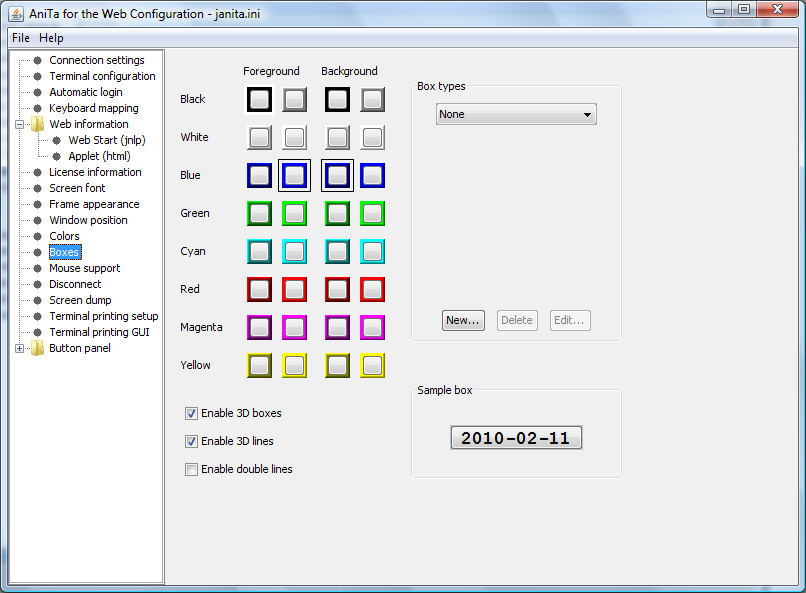

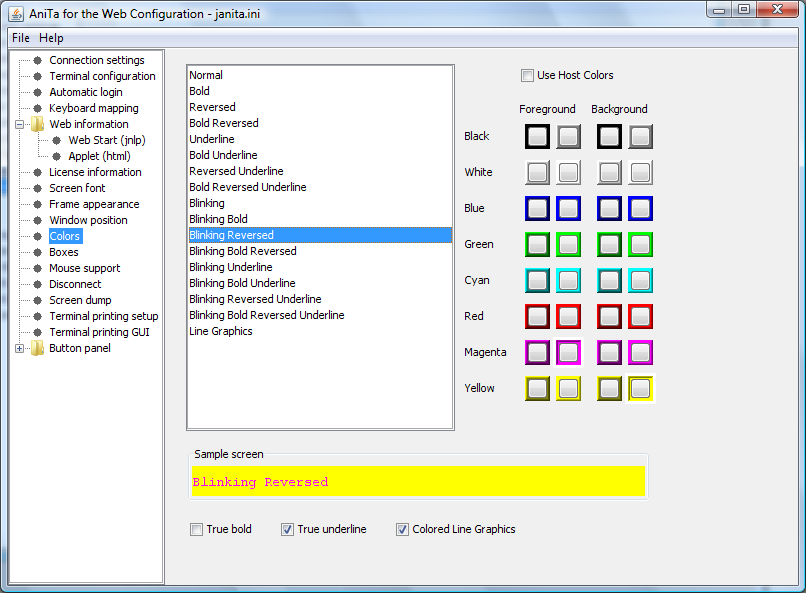

The easy to configure, 3-D box and color options, allow you to assign such attributes even when running an existing application written for text based monochrome screens. Alternatively the color can be controlled from the host with ANSI, ASCII or DEC VT525 color commands.

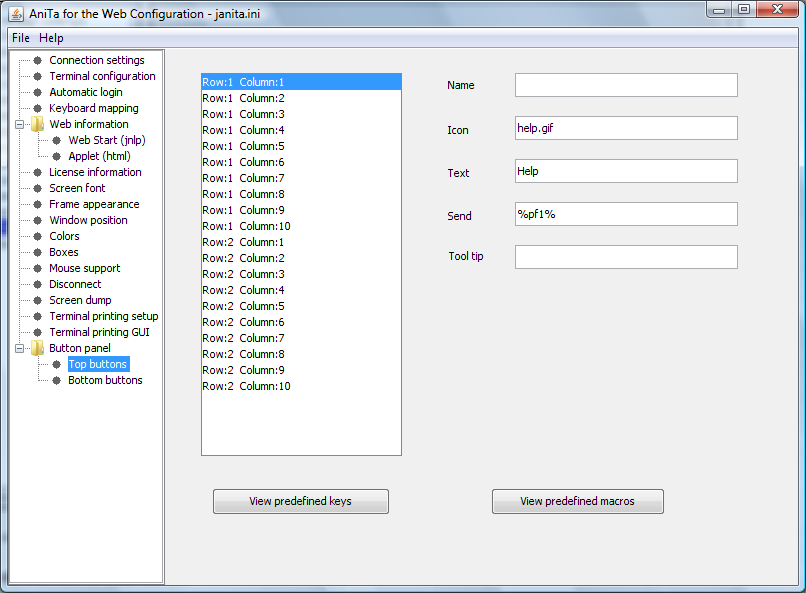

AniTa allows you to add buttons and icons to your text-based applications, and even to send information to the host by clicking the mouse on your application's screen.
AniTa gives you the choice of deploying as an Application, as an Applet or via Java Web Start. This means that you can choose to run AniTa for the Web either in its own window or in a web browser, and you choose whether to load the program from a disk or web server.
In addition to being able to be loaded from your local workstation, AniTa can be run from a network server - either a file server or a web server. The small size of the AniTa for the Web code, means that it can be deployed not just on a Local-Area-Network server, but also on a Internet or Intranet Wide-Area-Network server.
The ability to deploy AniTa for the Web on a centralized server greatly simplifies both installation and maintenance. A single centrally stored version of AniTa means that it can be easily upgraded and maintained. When new features are added to the product, the system administrator needs only to copy it onto the central server, then all users have access to the new version. In the same way, one or more centrally located configurations allow one configuration update to apply to all users.
AniTa for the Web is written in 100% JAVA. It conforms to the JAVA 2 specification and runs on a JAVA Virtual Machine version 5.0 or later.
This means that AniTa for the Web can run on any platform that supports this specification. Such platforms include Windows, Linux, Mac OS X, Solaris and UNIX well as a range of thin-clients.
By choosing AniTa for the Web as your terminal emulator, you gain independence of workstation platform. You can easily migrate from one platform to another and without problem combine different types of workstation platforms. You are no longer tied to one specific hardware or software supplier.
The pluggable look-and-feel capability implemented in AniTa for the Web means that you can have a "Microsoft Windows GUI" look-and-feel when running on Microsoft Windows and an "Linux windows GUI" look-and-feel when running on Linux or you can choose to have the same look-and-feel across all platforms.
In order to run the AniTa for the Web terminal emulator or its configuration program you must have a JAVA Virtual Machine (JVM). AniTa for the Web requires version 5.0 or later. Installation of such a JVM is explained in Chapter 2 of this document; if you already have such a JVM installed, you can skip all of chapter 2.
When running the terminal emulator as an application and when running the configuration program the JVM is normally provided by installing a JAVA Runtime Environment (JRE).
The AniTa for the Web terminal emulator can run as an Applet in a Netscape Navigator, Microsoft Internet Explorer, Mozilla or Mozilla Firefox web browser. When running as an applet, the JVM is normally provided as a plug-in to the web browser. It is not necessary to install the plug-in initially on every computer, instead the plug-in will be loaded the first time it is required (e.g. if not already present, the first time you run AniTa for the Web in a web page).
For your convenience, a copy of this documentation is provided on the AniTa for the Web release CD. The JANITA directory on the CD contains a sub-directory called janitadoc containing this document in a file called index.html.
The latest version of the documentations is always available on the Internet at: http://www.april.se/janita.
The following information can be used to contact us for more information about our other products. It can also be used to obtain support help if your local distributor is unable to help you.
The two e-mail addresses below can be used to contact April's marketing and support departments. The web server contains up-to-date information about all our products and how to contact us. The ftp server contains the latest upgrades and support releases for our products.
|
Web server: |
|
|
...or: |
|
|
Ftp server: |
In order to run the AniTa for the Web terminal emulator or its configuration program you must have a JAVA Virtual Machine (JVM). If you already have such a JVM installed, you can skip to the next chapter.
When running the terminal emulator as an application and when running the configuration program the JVM is normally provided by installing a JAVA Runtime Environment (JRE). When running the terminal emulator as an applet, the JVM is normally provided as a plug-in to the web browser.
AniTa for the Web will run with a JVM version 5.0 or higher.
The following information is provided only as a quick guide to installing the JVM. For the latest information see the relevant JVM documentation.
The JAVA Runtime Environment (JRE) for Windows 32-bit platforms is available from Sun. For convenience, we provide a copy on the same release CD as AniTa for the Web: in a catalog called "\JRE". The latest JRE can also be downloaded from Sun over the Internet at the address: http://java.sun.com/javase/downloads/index.jsp.
The JRE is contained in a file called: jre-1_5_0_06-windows-i586-p.exe. Note that the name of the file will change as the version of JRE changes.
To install the JRE on Windows:
From the Internet
Download the JRE for Windows from Sun: http://java.sun.com/javase/downloads/index.jsp.
Run jre-1_5_0_06-windows-i586-p.exe
Some versions of Linux ship with a JRE already installed, so that it is quite likely that you will not need to install the JRE. However the following procedure can be used for those systems without a JRE or with an old version.
Please note, that unlike the Windows JRE, Sun have a different install procedure for the different versions of the Linux JREs.
The JAVA Runtime Environment (JRE) for Intel based Linux platforms is available from Sun. For convenience, we provide a copy on the same release CD as AniTa for the Web: in a catalog called "/JRE". The latest JRE can also be downloaded from Sun over the Internet at the address: http://java.sun.com/javase/downloads/index.jsp.
The JRE is contained in a file called: jre-1_5_0_06-linux-i586.bin or jre-1_5_0_06-linux-i586-rpm.bin. Note that the name of the file will change as the version of JRE changes.
To install the JRE in Linux:
Create a directory under which the
software will be installed
mkdir /usr/java
Change to this directory
cd /usr/java
From the Internet
Download the JRE for Linux from Sun: http://java.sun.com/javase/downloads/index.jsp.
Install the JRE:
chmod
a+x ./jre-1_5_0_06-linux-i586.bin
./jre-1_5_0_06-linux-i586.bin
To install the JRE in Linux as an RPM:
Create a directory under which the
software will be installed
mkdir /usr/java
Change to this directory
cd /usr/java
From the Internet
Download the JRE for Linux from Sun: http://java.sun.com/javase/downloads/index.jsp.
Unpack the JRE:
chmod
a+x ./jre-1_5_0_06-linux-i586-rpm.bin
./jre-1_5_0_06-linux-i586-rpm.bin
Install the JRE:
rpm -iv
jre-1_5_0_06-linux-i586-rpm.bin
Some versions of Solaris ship with a JRE already installed, so that it is quite likely that you will not need to install the JRE. However the following procedure can be used for those systems without a JRE or with an old version.
The JAVA Runtime Environment (JRE) for Intel based Solaris platforms is available from Sun. For convenience, we provide a copy on the same release CD as AniTa for the Web: in a catalog called "/JRE". The latest JRE can also be downloaded from Sun over the Internet at the address: http://java.sun.com/j2se/downloads.html.
The JRE is contained in a self-extracting binary file called: jre-1_5_0_06-solaris-i586.sh . Note that the name of the file will change as the version of JRE changes (e.g. version 1.2.2 was called Solaris_JDK_1.2.2_06_i386.bin).
To install the JRE in Solaris:
Change to the /export directory: cd /export
From the AniTa for the Web release CD
The CD is normally automatically mounted under "/cdrom/cdrom0".
Copy JRE: cp /cdrom/cdrom0/JRE/jre-1_5_0_06-solaris-i586.sh .
From the Internet
Download the JRE for Solaris Intel from Sun: http://java.sun.com/javase/downloads/index.jsp.
Make sure that execute permissions are set on the self-extracting binary: chmod +x jre-1_5_0_06-solaris-i586.sh
Run the self-extracting binary: ./jre-1_5_0_06-solaris-i586.sh
Some versions of Solaris ship with a JRE already installed, so that it is quite likely that you will not need to install the JRE. However the following procedure can be used for those systems without a JRE or with an old version.
The JAVA Runtime Environment (JRE) for Sparc based Solaris platforms is available from Sun. For convenience, we provide a copy on the same release CD as AniTa for the Web: in a catalog called "/JRE". The latest JRE can also be downloaded from Sun over the Internet at the address: http://java.sun.com/j2se/downloads.html.
The JRE is contained in a self-extracting binary file called: jre-1_5_0_06-solaris-sparc.sh. Note that the name of the file will change as the version of JRE changes (e.g. version 1.2.2 was called Solaris_JDK_1.2.2_06_sparc.bin).
To install the JRE in Solaris:
Change to the /export directory: cd /export
From the AniTa for the Web release CD
The CD is normally automatically mounted under "/cdrom/cdrom0".
Copy JRE: cp /cdrom/cdrom0/JRE/jre-1_5_0_06-solaris-sparc.sh .
From the Internet
Download the JRE for Solaris Sparc from Sun: http://java.sun.com/javase/downloads/index.jsp.
Make sure that execute permissions are set on the self-extracting binary: chmod +x jre-1_5_0_06-solaris-sparc.shn
Run the self-extracting binary: ./jre-1_5_0_06-solaris-sparc.sh
Mac OS X ships with a highly-optimized, tightly integrated implementation of Java 2 Standard Edition, originally 1.3 and subsequently 1.4.1 and 1.5. It includes the client version of the HotSpot virtual machine. Further information can be found at: http://www.apple.com/java.
Information about obtaining and installing IBM AIX Java Technology Edition can be found at: http://www-106.ibm.com/developerworks/java/jdk/aix/index.html.
Currently only Netscape 6 supports a Java 2 Runtime Environment. No other browsers support JAVA 1.2 or later using their JAVA implementation, thus in order to run AniTa for the Web in these browser you need to have a JAVA plug-in.
JAVA Plug-Ins are available for the Netscape Navigator and Microsoft Internet Explorer web browsers from Sun at: http://java.sun.com/products/plugin/. The same site also contains very useful FAQs and Documentation.
It is not necessary to install the plug-in initially on every computer, instead the plug-in will be loaded the first time it is required (e.g. if not already present, the first time you run AniTa for the Web in a web page).
For other JAVA Virtual Machines, refer to the documentation provided with the JVM.
This chapter describes the installation of AniTa for the Web. Different sections of this chapter describe the installation methods on different operating systems.
AniTa for the Web can be installed on Windows 95, 98, NT, 2000, ME or XP Platforms.
To install the AniTa for the Web on Windows:
From the AniTa for the Web release CD
Place the CD into the drive, this will automatically start the April install program - select AniTa for the Web to start the installation.
If the April install program does not start automatically, for example if the CD is mapped via the network rather than in a local drive, go to the \JANITA catalog on the CD and run the program JANITA2103.EXE - note that the name of the file will change as its version changes.
From the Internet
Download AniTa for the Web for Windows from April: http://www.april.se/janita. This is provided as a self-extracting executable called JANITA2900.EXE - note that the name of the file will change as its version changes.
Run the downloaded file.
This install program will automatically install the software and create Windows icons. You will be able to choose whether to perform installation as an Application or for the Web or for both.
For a new installation, you will be prompted will by dialog requesting your host computer information. This will set-up a basic configuration file, which can be changed and further customized later. If performing an upgrade, your existing configuration will be used.
The above procedure can also be followed when performing an upgrade. This will cause the AniTa for the Web software to be upgraded, but the configuration files will remain unchanged.
Just click on one of the shortcut icons, to run the terminal emulator or its configuration program.
The installation procedure will automatically create an uninstall program. To run this, go to the "Control Panel" and click on "Add/Remove Programs". Select "AniTa for the Web" and click on the Add/Remove button.
JaniTa is packaged as a standard Mac OS/X installable .PKG format file contained on a virtual disk image .DMG.
Connect to April download server:
Download method:
Double-click the JaniTaxxxx.pkg icon. The Mac OS/X Installer will install JaniTa as "AniTa Terminal" folder in your "Program" folder.
If the Installer/Gatekeeper rejects because of unidentified developer:
After installation, the .dmg is no longer needed.
Starting AniTa:
This section described how to install AniTa for the Web on Linux platforms. It also explains how to add AniTa for the Web icons to the desktop - examples are given for the KDE 2.1 desktop. The procedures are similar for other desktops such as Gnome and CDE.
Create a convenient catalog to contain AniTa for the Web: mkdir /usr/local/janita
Change to this directory: cd /usr/local/janita
From the AniTa for the Web release CD
Create a directory called /cdrom: mkdir /cdrom
Mount the CD: mount -r /dev/cdrom /cdrom
Unpack AniTa for the Web: tar xvf /cdrom/JANITA/janita2103.tar - note that the name of the file will change as its version changes.
From the Internet
Download AniTa for the Web in "tar" format from April: http://www.april.se/janita - note that the name of the file will change as its version changes.
Unpack AniTa for the Web: tar xvf janita2103.tar
Run the install shell script: sh
./install-janita
This will perform the following:
Prompt for the path to the Java Virtual Machine to be used when running AniTa for the Web.
Create a script called janita, to start the terminal emulator.
Create a script called janitaconfig, to start the configuration program.
If this is a first time installation, start janitaconfig in order to create a configuration file.
Prompt to copy desktop icons (launchers) to your GNOME or
KDE desktop.
Note: Tested on GNOME 2.2 and KDE 3.1.
The GNOME installation presumes that you have mozilla installed as
a web browser, although you can change the link
(janitahelp.desktop) to another web browser such as konqueror or
netscape.
The above procedure can also be followed when performing an upgrade. This will cause the AniTa for the Web software to be upgraded, but the configuration files will remain unchanged.
It is possible to start AniTa from a desktop icon.
Right click on the Desktop, select "Create New" and "Link To Application"
On the "General" property page enter the name: AniTa for the Web
On the "General" property page click on the icon symbol. Then select "Other Icons" and "Browse". Enter the name of the icon: /usr/local/janita/janita.png
On the "Execute" property page click enter the command: /usr/local/janita/janita
To start the configuration program from a desktop icon.
Right click on the Desktop, select "Create New" and "Link To Application"
On the "General" property page enter the name: AniTa Configuration
On the "General" property page click on the icon symbol. Then select "Other Icons" and "Browse". Enter the name of the icon: /usr/local/janita/janitaconfig.png
On the "Execute" property page click enter the command: /usr/local/janita/janitaconfig
To add the AniTa for the Web documentation a desktop icon.
Right click on the Desktop, select "Create New" and "Link To Location (URL)"
Enter the URL to the documentation: file:/usr/local/janita/index.html
Click OK
Right click on the newly created link
On the "General" property page enter the name: AniTa Documentation
On the "General" property page click on the icon symbol. Then select "Other Icons" and "Browse". Enter the name of the icon: /usr/local/janita/janitahelp.png
It is possible to start AniTa from the KDE Start Menu.
From the start menu, select "Configure Panel" and "Menu Editor" to run the menu editor: kmenuedit
Click on the "New Submenu" icon and enter the name of the menu: AniTa for the Web
Click on the newly created submenu
Click on the "New Item" icon and enter the name of the item: AniTa
Click on the newly created item
In the general properties, enter the "Command": /usr/local/janita/janita
Enter the "Work Path": /usr/local/janita
Click on the icon symbol after the "Work Path". Then select "Other Icons" and "Browse". Enter the name of the icon: /usr/local/janita/janita.png
To add the configuration program to the start menu.
Click on the newly created submenu
Click on the "New Item" icon and enter the name of the item: Configuration
Click on the newly created item
In the general properties, enter the "Command": /usr/local/janita/janitaconfig
Enter the "Work Path": /usr/local/janita
Click on the icon symbol after the "Work Path". Then select "Other Icons" and "Browse". Enter the name of the icon: /usr/local/janita/janitaconfig.png
To add the AniTa for the Web documentation to the start menu.
Click on the newly created submenu
Click on the "New Item" icon and enter the name of the item: User's Guide
Click on the newly created item
In the general properties, enter the "Command": konqueror /usr/local/janita/index.html
Enter the "Work Path": /usr/local/janita
Click on the icon symbol after the "Work Path". Then select "Other Icons" and "Browse". Enter the name of the icon: /usr/local/janita/janitahelp.png
To Run the AniTa for the Web terminal emulator from the command line: /usr/local/janita/janita
To Run the AniTa for the Web configuration from the command line: /usr/local/janita/janitaconfig
If you configured desktop icons, just click on one of the shortcuts, to run the terminal emulator or its configuration program.
To make AniTa for the Web available via the Web server on your Linux machine, you must do the following additional steps:
Determine the location of the directory tree shared by the web server. By default this is /home/httpd/html for Apache.
Copy the AniTa for the Web files
to the desired location within the tree:
cp
/usr/local/janita/janita.jar /home/httpd/html
cp
/usr/local/janita/janita.gif /home/httpd/html
Run the AniTa for the Web configuration program: /usr/local/janita/janitaconfig
Fill in the web information pages, make sure to point the file paths to the correct directory.
From the File menu, select Export to JNLP and / or HTML, to create the Web files.
This section described how to install AniTa for the Web on UNIX platforms, including Solaris.
Create a convenient catalog to contain AniTa for the Web: mkdir /usr/local/janita
Change to this directory: cd /usr/local/janita
From the AniTa for the Web release CD
Mount the CD, for example on: /cdrom/cdrom0
Unpack AniTa for the Web: tar xvf /cdrom/cdrom0/JANITA/janita2103.tar - note that the name of the file will change as its version changes.
From the Internet
Download AniTa for the Web in "tar" format from April: http://www.april.se/janita - note that the name of the file will change as its version changes.
Unpack AniTa for the Web: tar xvf janita2103.tar
Run the install shell script: sh
./install-janita
This will perform the following:
Prompt for the path to the Java Virtual Machine to be used when running AniTa for the Web.
Create a script called janita, to start the terminal emulator.
Create a script called janitaconfig, to start the configuration program.
If this is a first time installation, start janitaconfig in order to create a configuration file.
The above procedure can also be followed when performing an upgrade. This will cause the AniTa for the Web software to be upgraded, but the configuration files will remain unchanged.
If you want to start AniTa for the Web from a desktop icon or start bar, you can do this. See "Install on Linux" as a guide to doing this.
To Run the AniTa for the Web terminal emulator from the command line: /usr/local/janita/janita
To Run the AniTa for the Web configuration from the command line: /usr/local/janita/janitaconfig
If you configured desktop icons, just click on one of the shortcuts, to run the terminal emulator or its configuration program.
To make AniTa for the Web available via the Web server on your UNIX machine, you must do the following additional steps:
Determine the location of the directory tree shared by the web server. For example /usr/local/apache.
Copy the AniTa for the Web files
to the desired location within the tree:
cp
/usr/local/janita/janita.jar /usr/local/apache
cp
/usr/local/janita/janita.gif /usr/local/apache
Run the AniTa for the Web configuration program: /usr/local/janita/janitaconfig
Fill in the web information pages, make sure to point the file paths to the correct directory.
From the File menu, select Export to JNLP and / or HTML, to create the Web files.
Java Web Start combines the features and flexibility of a Java Application with the convenience and ease of use of a Web based program.
With Java Web Start, AniTa for the Web can be installed and configured once on a central web server, and then executed by users anywhere on the web without needing to install AniTa.
With Java Web Start, you launch AniTa for the Web simply by clicking on a Web page link. If AniTa for the Web is not present on your computer, Java Web Start automatically downloads all necessary files. It then caches the files on your computer so that AniTa for the Web is always ready to be relaunched anytime you want -- either from an icon on your desktop or from the browser link. And no matter which method you use to launch the application, the most current version of the application is always presented to you
Java Web Start runs independently of any browser, you can shut down your browser or surf to another Web page and continue using AniTa for the Web. When deployed with Java Web Start, AniTa for the Web does not require a browser interface to operate.
To save time later, the user can relaunch AniTa for the Web from the desktop icon, without powering up their browser again.
AniTa for the Web will only be loaded once across the web. Subsequently it will be executed from the client's local cache. However new versions of the AniTa for the Web program, or changes to its configuration will be automatically detected and updated.
AniTa for the Web is signed to provide security in an Internet environment.
On the workstation you need a web browser and a Java Runtime Environment version 1.5 or later.
To install a JRE go to: http://java.sun.com/javase/downloads/index.jsp
You can test the Web Start functionality it by running one of Sun's demo applications.
These are available at: http://java.sun.com/products/javawebstart/demos.html
Files
The directory on your web server that is chosen for 'AniTa for the Web' should contain the following files:
janita.jar - The AniTa for the Web program. This file is part of the release.
janita.gif - The AniTa for the Web icon. This file is part of the release.
janita.jnlp - The AniTa for the Web Java Network Lauch Protocol file. This file will be created by janitaconfig when you perform export to JNLP.
janita.aws - The AniTa for the Web configuration information. This file will be created by janitaconfig when you perform export to JNLP.
Because of janitaconfig's "export to jnlp" function, we suggest that you install the Java Runtime Environment 1.5 and the full AniTa for the Web onto the web server, even if you do not plan to use the application. There is however no requirement to install either Java or AniTa onto the Web server, it is quite possible to run the configuration program on a workstation, and just copy the exported JNLP and AWS file from the workstation to the server.
MIME
Configure the Web server to use the Java Web Start MIME type. All files with the .jnlp file extension should be set to the application/x-java-jnlp-file MIME type.
Most Web browsers uses the MIME type returned with the contents from the Web server to determine how to handle the particular content. The server must return application/x-java-jnlp-file MIME type for JNLP files in order for Java Web Start to be invoked. Each Web server has a specific way in which to add MIME types.
For a full explanation, check the documentation for the specifics of your Web server.
MIME on Apache
For the Apache Web server you must add a line to the MIME Types file. Look in the httpd.conf file for the parameter TypesConfig. This is followed by the name of the MIME Types file used by Apache. This file is usually called /etc/mime.types. Check this file for jnlp, and if it doesn't have an entry then add the following line:
application/x-java-jnlp-file jnlp
It is necessary to restart the Apache web server after adding a new MIME mapping !!!
MIME on Microsoft IIS

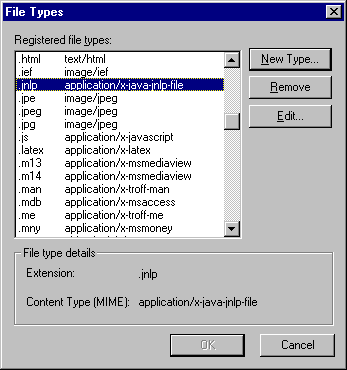

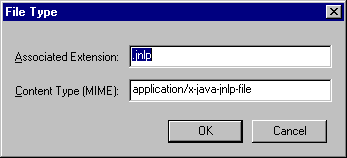

For Microsoft's Internet Information Server, this is done using the Internet Service Manager. Right click on the server and select properties. Select Computer MIME map and determine whether the .jnlp extension is mapped.
If the .jnlp extension is not mapped, then click "New Type" to map .jnlp to application/x-java-jnlp-file.
It is necessary to restart the IIS web server after adding a new MIME mapping !!!
AniTa for the Web can be run as an applet in a Web Browser. The AniTa applet is contained within the HTML code of a web page. The web page and the applet reside on the web server. The web page is normally in HTML format, but other formats such as ASP (Active Server Page) or JSP (Java Server Page) can be used to contain AniTa. ASP or JSP pages are especially useful if server side scripting is used in conjunction with AniTa.
AniTa is run in the Web Browser's Window and controlled by the Web Browser. AniTa is dependant on the type and version of Web Browser used. This is different from using Web Start, which only uses the Web Browser to start AniTa, then AniTa has control over its own window.
When running as an applet, AniTa for the Web can be installed and configured once on a central web server, and then executed by users anywhere on the web without needing to install AniTa.
AniTa for the Web is signed to provide security in an Internet environment.
On the workstation you need a Web Browser and a Java Plug-In Runtime Environment. AniTa for the Web requires version 5.0 or later of Java to run.
The first time the web browser encounters a web page that specifies the use of the plug-in, the browser must download and install the required files. System administrators can determine where users download Java Plug-in software; either from http://java.sun.com or from an internal server.
Sun provide information about the latest plug-in on their web site. Plug-ins can be downloaded free of charge from Sun: http://java.sun.com/products/plugin/
The directory on your web server that is chosen to for AniTa for the Web should contain the following files. They can be copied anywhere into the normal directory tree shared by the web server. the do not need to be placed in any special catalog such as cgi-bin.
janita.jar - The AniTa for the Web program. This file is part of the release.
janita.html - The Web Page containing the Applet and the configuration parameters. This file will be created by janitaconfig when you perform export to HTML.
You need to create a web page to contain the applet. This page is normally in HTML format. A default HTML page can be created automatically by the AniTa for the Web configuration program janitaconfig The web page will contain HTML tags to hold the applet and the configuration parameters.
Because of janitaconfig's "export to html" function, we suggest that you install the Java Runtime Environment 5.0 and the full AniTa for Java onto the web server, even if you do not plan to use the application. There is however no requirement to install either Java or AniTa onto the Web server, it is quite possible to run the configuration program on a workstation, and just copy the exported HTML file from the workstation to the server.
Once the configuration has been exported, the HTML file can be customized. It is also possible to use this HTML file as the basis for an ASP (Active Server Pages) or JSP (Java Server Pages) file. These allow the page including the AniTa for the WEB configuration to be changed dynamically using Visual Basic and JavaScript (ASP) or Java (JSP) programs.
Note This section is only relevant to versions prior to 2.0 since all code is signed starting with version 2.0.
The AniTa for the WEB applet is provided in two versions, the file janita.jar which is unsigned and the file janitas.jar which has been signed.
When an applet that has been signed is loaded into the web browser it is possible to verify who its creator was (in our case April System Design AB with a home site of www.april.se).
The applet is also checked to verify that it has not been changed since it was signed by the creator. A signed applet cannot be infected by a virus and still be successfully verified.
Web browsers contain a security mechanism called the sandbox. This sandbox greatly restricts the capabilities of applets. For example, the sandbox will only allow an applet to establish a terminal session (telnet) with the web server, it is not possible to telnet directly into any other machine.
However because of the built in verification security in a signed applet, it is possible for the user to "trust" a signed applet. The "trusted" applet still runs within the browser's sandbox, but with many of the restrictions removed.
The following functions can be performed by a signed and trusted, but not an unsigned, AniTa for the WEB applet.
Connect to any host.
[Note:
unsigned applets can only connect to the host from which they
were loaded; i.e. to use the unsigned version of AniTa for the WEB
you must have a web server in the same machine as your host
application.]
Read and write files on the local client's file system.
Start other programs on the local client.
We recommend using the signed version of the AniTa for the WEB applet.
The configuration information for AniTa for the Web is stored in an INI file, usually called janita.ini. The configuration program, janitaconfig, allows you to set most of the available configuration parameters. If you want to use a different configuration file name, this can be specified as the first parameter on the janitaconfig command line.

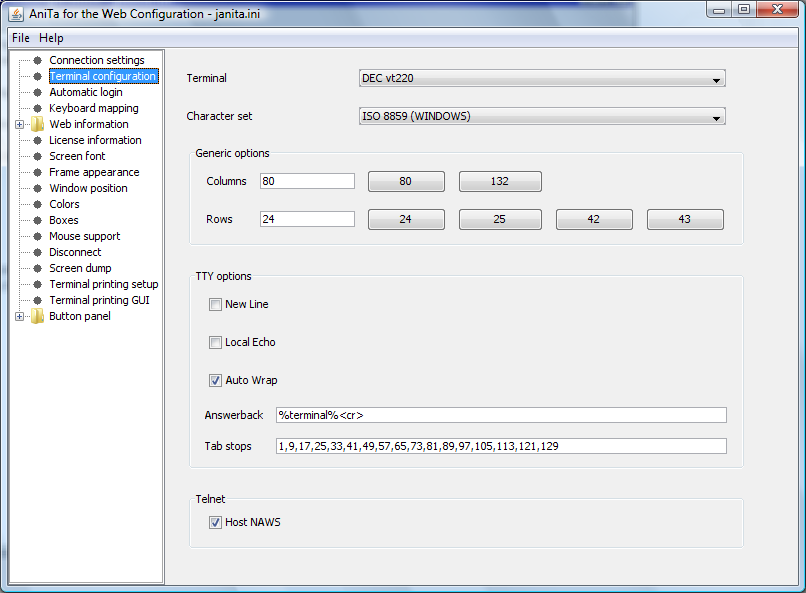

The configuration program is divided into a number of different cards. Each of the cards is shown and explained later in this chapter.
AniTa for the Web supports a wide range of mnemonics. These are compatible with those in the Windows version of AniTa. Mnemonics always start with a < and end with a >, for example <ESC>.
These mnemonics allow different ways to specify the same code. For example all of the following would have the same effect: <cr> <ctrl-M> and <0D>
Letters used in mnemonics are not case dependant.
Valid mnemonics for ASCII characters:
<nul> <null> <soh> <stx> <etx> <eot> <enq> <ack> <bel> <bs> <ht> <tab> <lf> <vt> <form> <cr> <so> <si> <dle> <dc1> <dc2> <dc3> <dc4> <nak> <syn> <sync> <etb> <can> <em> <sub> <esc> <fs> <gs> <rs> <us> <del> <csi>
Control characters can also be specified using a mnemonic containing ctrl- followed a character. For example to send a control C (0x03) use the mnemonic <ctrl-C>.
Characters can be specified using a mnemonic containing their hexadecimal value as a two-digit value. To send the character 'A' which has a hexadecimal code of 0x41 use the mnemonic <41>.
AniTa for the Web supports a wide range of macros. With the exception of the keyboard macros, these are compatible with those in the Windows version of AniTa. Macro names always start with a % and end with a %, for example %hangup%. A macro name may optionally be followed by some additional data, for example %connectto%www.april.se
Letters used in macro names are not case dependant.
Examples:
%url%http://www.april.se/english/ftp.asp
%url%ftp://ftp.april.se/pub/DynaPass/manual.pdf
%url%file://C:/files/table.csv
%url%ftp://ftp.april.se/pub/anita/nectar_99.txt
%url%mailto:info@april.se
Keyboard macros cause the value of a terminal specific key to be sent to the host. The keyboard macros available depend on the terminal type.
Keyboard macros available for DEC terminals such as VT220:
%backspace% %enter% %np_enter% %np_period% %np_comma% %np_minus% %np_0% %np_1% %np_2% %np_3% %np_4% %np_5% %np_6% %np_7% %np_8% %np_9% %F6% %F7% %F8% %F9% %F10% %F11% %F12% %F13% %F14% %F15_HELP% %F16_DO% %F17% %F18% %F19% %F20% %FIND% %INSERT% %REMOVE% %SELECT% %PREV_SCREEN% %NEXT_SCREEN% %UP% %DOWN% %RIGHT% %LEFT% %PF1% %PF2% %PF3% %PF4% %PF5% %F6_S% %F7_S% %F8_S% %F9_S% %F10_S% %F11_S% %F12_S% %F13_S% %F14_S% %F15_HELP_S% %F16_DO_S% %F17_S% %F18_S% %F19_S% %F20_S%
Keyboard macros available for ANSI terminals such as SCO Console:
%UP% %DOWN% %RIGHT% %LEFT% %F1% %F1_S% %F1_C% %F1_SC% %F2% %F2_S% %F2_C% %F2_SC% %F3% %F3_S% %F3_C% %F3_SC% %F4% %F4_S% %F4_C% %F4_SC% %F5% %F5_S% %F5_C% %F5_SC% %F6% %F6_S% %F6_C% %F6_SC% %F7% %F7_S% %F7_C% %F7_SC% %F8% %F8_S% %F8_C% %F8_SC% %F9% %F9_S% %F9_C% %F9_SC% %F10% %F10_S% %F10_C% %F10_SC% %F11% %F11_S% %F11_C% %F11_SC% %F12% %F12_S% %F12_C% %PGUP% %PGDN% %INS% %DEL% %HOME% %END% %NP_5% %BTAB%
Keyboard macros available for Wyse terminals such as Wyse60:
%INSCHAR% %INSLINE% %INS% %REPL% %PGDN% %PGUP% %END% %END_S% %DELLINE% %DELCHAR% %PRINT% %DEL% %DEL_S% %END% %END_S% %PGDN_S% %PGUP_S% %F1% %F2% %F3% %F4% %F5% %F6% %F7% %F8% %F9% %F10% %F11% %F12% %F13% %F14% %F15% %F16% %F1_S% %F2_S% %F3_S% %F4_S% %F5_S% %F6_S% %F7_S% %F8_S% %F9_S% %F10_S% %F11_S% %F12_S% %F13_S% %F14_S% %F15_S% %F16_S% %F1_C% %F2_C% %F3_C% %F4_C% %F5_C% %F6_C% %F7_C% %F8_C% %F9_C% %F10_C% %F11_C% %F12_C% %F13_C% %F14_C% %F15_C% %F16_C% %F1_SC% %F2_SC% %F3_SC% %F4_SC% %F5_SC% %F6_SC% %F7_SC% %F8_SC% %F9_SC% %F10_SC% %F11_SC% %F12_SC% %F13_SC% %F14_SC% %F15_SC% %F16_SC% %ESC% %ESC_S% %BTAB% %TAB% %BSPACE% %BSP_S% %RETURN% %RETUR_S% %HOME% %HOME_S% %UP% %UP_S% %DOWN% %DOWN_S% %LEFT% %LEFT_S% %RIGHT% %RIGHT_S% %ENTER% %ENTER_S% %SEND%
Once a configuration has been completed, it is possible to export it into an HTML file. The file format exported will contain both an <OBJECT> and an <EMBED> tag so that it works with both Internet Explorer and Netscape Navigator browsers. If the "Auto export to HTML on save" box is checked on the Web Information card, then the configuration will automatically be exported to the specified HTML file every time a save is performed.
Once a configuration has been completed, it is possible to export it for Java Web Start. This will create a JNLP file for Web Start and an AWS file for AniTa. If the "Auto export to JNLP on save" box is checked on the Web Start Information card, then the configuration will automatically be exported to the specified JNLP and AWS files every time a save is performed.
Existing users of AniTa for Windows can import their existing configuration (WCF and MAP) files into the configuration program to create a AniTa for the Web configuration (INI) file.

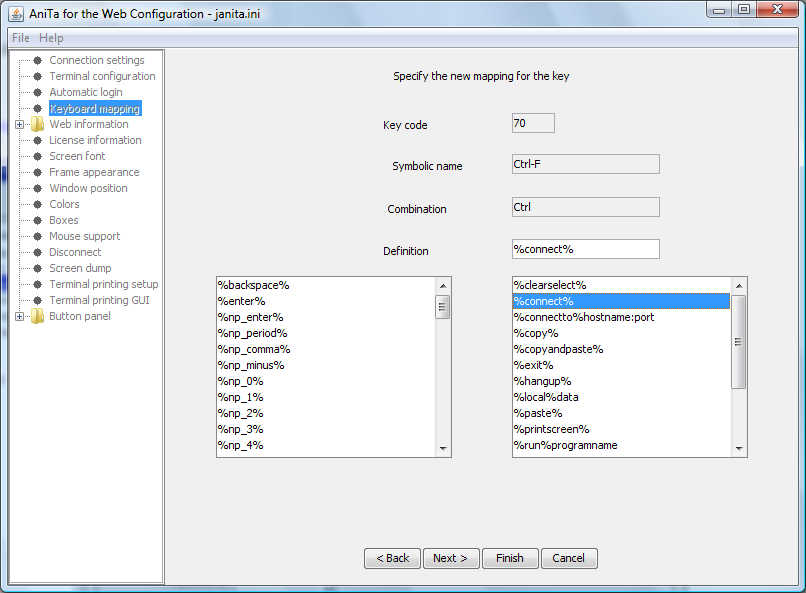

To determine how a key is mapped, click in the "Mapped keys" scroll box. Move the select marker up or down to find a specific key. The "Mapped keys" box shows one line for each mapped key. The line contains three parameters, the keycode, the shift code and the string to which the key is mapped. The key and shift codes will be translated and shown in the "Key Code", "Symbolic name" and shift "Combination" fields.
Press the "Map new key" button.
Click on the "Next" button to start the wizard

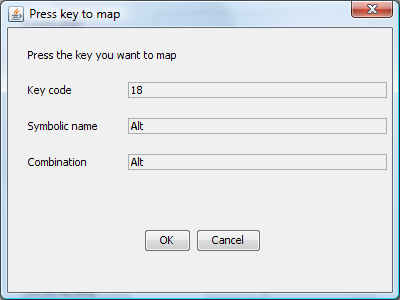

Press the key or key combination
you wish to map. To map shift-F9 press the F9 key and the shift key
together. The key combination to be mapped will be shown in the "Key
Code", "Symbolic name" and shift "Combination"
fields.
Click on the "Ok" button to confirm which key combination you are mapping
Enter the string to which the key should be mapped. The string may contain mnemonics and macros. You can...
Type in the string directly into the "Definition" field.
Click on the "View predefined keys" button to select a predefined key macro for your specific terminal type.
Click on the "View predefined macros" button to select an AniTa macro.
Click on the "Finish" button to complete the mapping.
Note: Java does not allow the numeric keypad's Enter key to be mapped differently from the main keyboard's Enter key. These both have the same key code in Java.
Select the key in the "Mapped keys" scroll box.
Press the "Delete key mapping" button.
The parameters on this page are used to export the configuration information from the configuration file into a web page that can be used to start AniTa as a Web Start application. If you do not plan to run AniTa via Web Start then you can ignore these parameters.
To run AniTa via the Web, just point the Web Browser at the anita.jnlp page, or set-up link to it and click.

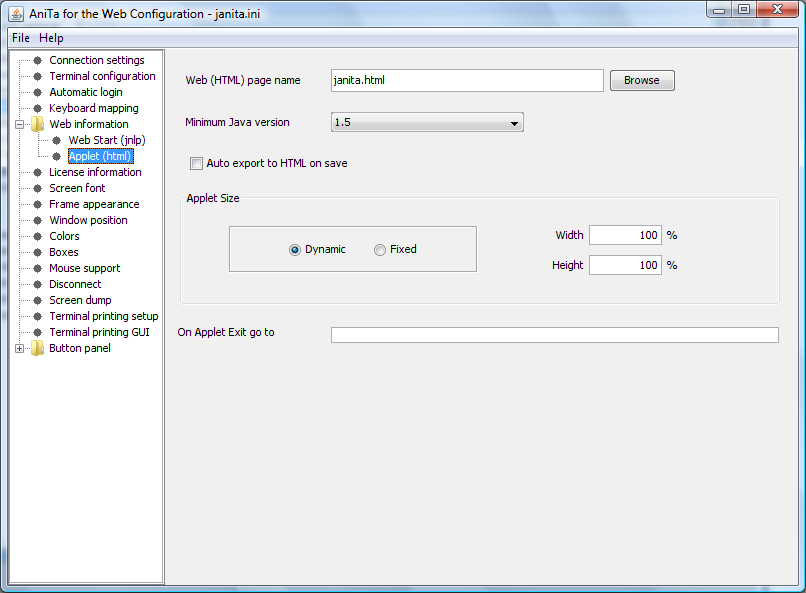

The parameters on this page are used to export the configuration information from the configuration file into a web page that contains AniTa as an Applet. If you do not plan to run AniTa as an Applet in a Web Browser then you can ignore these parameters.
To run AniTa via the Web, just point the Web Browser at the anita.html page, or set-up link to it and click.

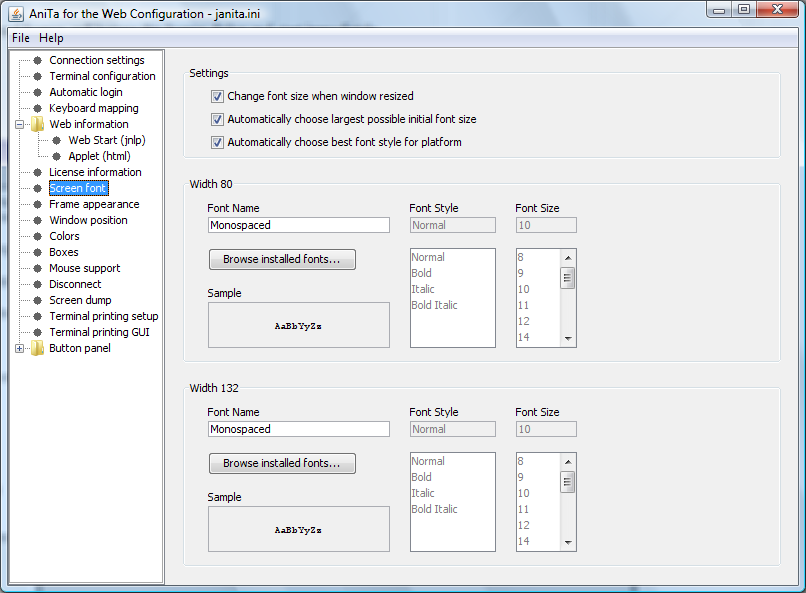

There are two font selection areas for when the terminal is in 80 character and 132 character wide mode, respectively. It is often desired to change to a smaller and/or narrower font when the terminal switches from a screen that is 80 to one which is 132 characters in width.

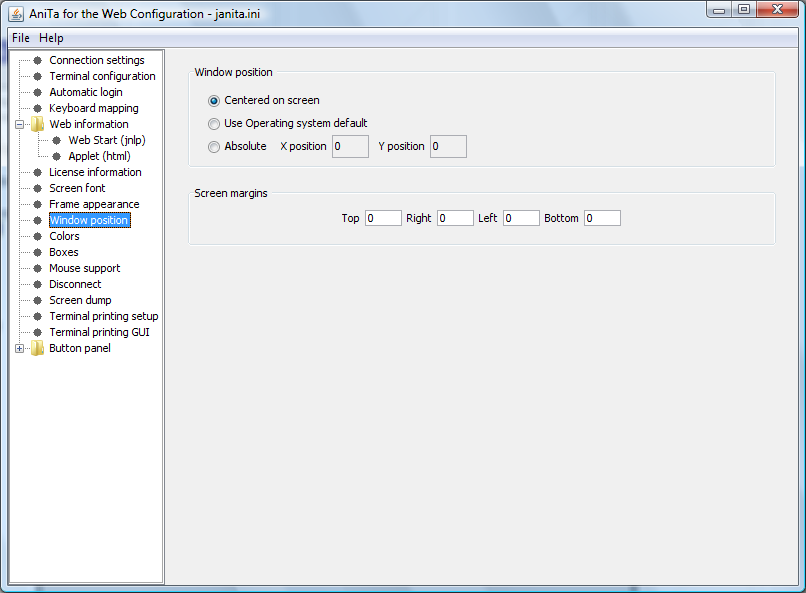

These parameters are used to control how an AniTa application's window is initially positioned on the screen. They only apply when running as an application. They can be ignored when running as an Applet; positioning is then performed by the HTML code in the Web Browser.
This dialog box determines how AniTa maps the different terminal screen attributes to colors. Selecting "Use Host Color" will disable AniTa's mapping of attributes to colors, this being especially useful if the host sets its own colors.
Click on the attribute in the list box (e.g. Bold).
The foreground and background colors will be shown in the columns to the right. The colors for the specified attribue will be displayed with a white or gray border and will be shown as an in-box.
A sample of how text would be shown on the screen is also shown at the bottom of the dialog box
Click on the attribute in the list box (e.g. Bold).
Click on the desired foreground color the columns to the right, the new color will be displayed with a white or gray border and become an in-box.
Click on the desired background color the columns to the right, the new color will be displayed with a white or gray border and become an in-box.
A sample of how text would be shown on the screen is also shown at the bottom of the dialog box
This dialog box determines how AniTa maps different colors to boxes. By default there are three types of boxes, an in-box and out-box and an edit-box. It is possible to add new box definitions.
The foreground and background colors which have been mapped to a box are displayed with a box around their color.
Click on the color. This can be either a foreground or a background color. The current color will be displayed with a white or gray border and become an in-box.
A sample box is drawn for this color containing today's date, and the box type shown.
Click on the color. This can be either a foreground or a background color. The current color will be displayed with a white or gray border and become an in-box.
Choose the required box from the "Box types" drop down menu.
Click on the color. This can be either a foreground or a background color. The current color will be displayed with a white or gray border and become an in-box.
Click on the "New.." box types button.
This will show the following
dialog.
Enter a symbolic name for the new box.
Specify the foreground color for the new box.
Specify the background color for the new box.
Specify the box state for the new box.
You can see a sample of the new box drawn containing today's date.
Press OK to create a box.
Once created a box type can be edited or deleted. It is not however possible to edit or delete the values of the default boxes.

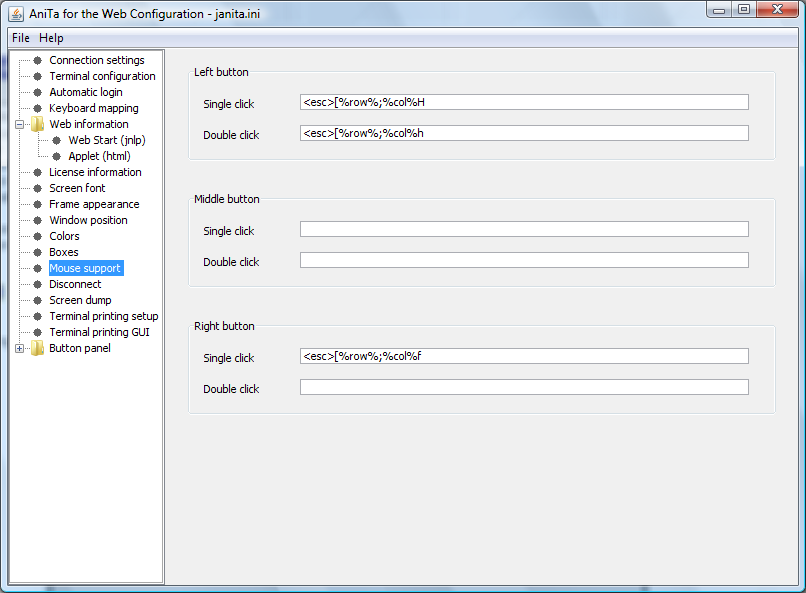

A string can be configured for the different mouse actions. When the user performs a mouse action, the corresponding string will be sent to the host. The string may contain mnemonics and macros. There are special macros that only apply to mouse actions. An empty field will cause the specific action to be disabled.

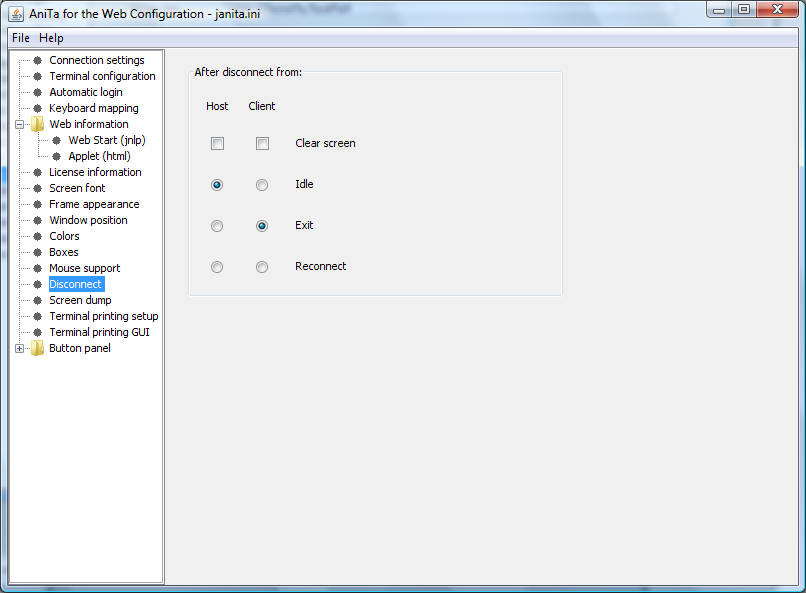

This screen determines what action is taken when a disconnect occurs. Different actions can be specified depending on if it were the host or the client that caused the disconnect.

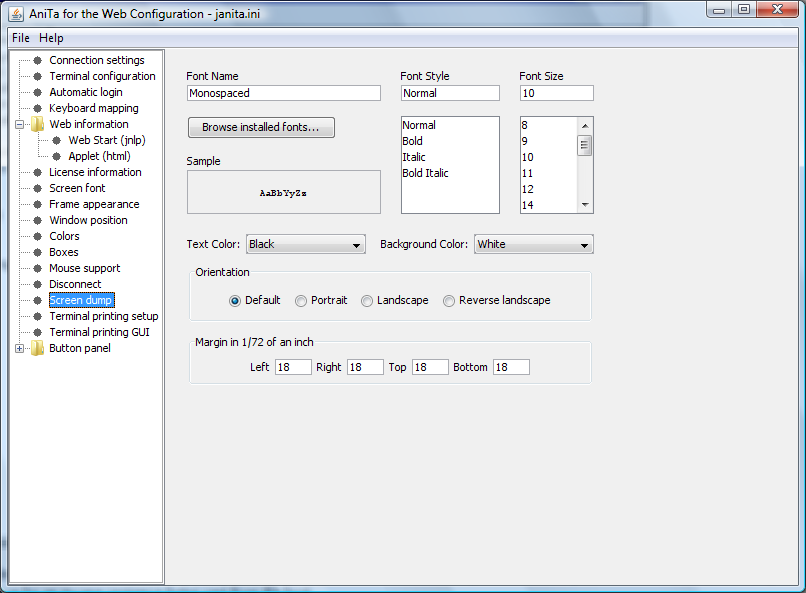

This screen controls the action performed by a screen dump. A screen dump action can be caused by the user clicking the Print button, or by executing the %printscreen% macro or by an escape sequence being sent from the host.

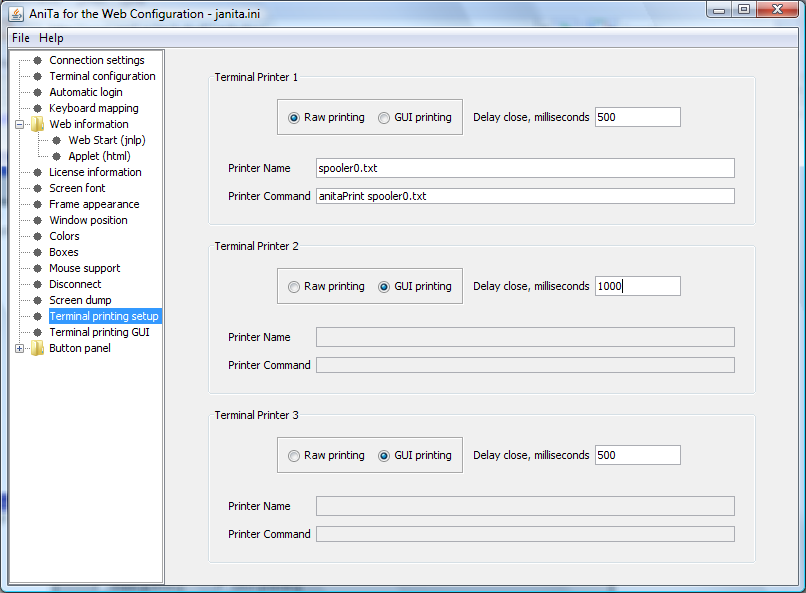

This screen controls the way that the emulator performs terminal printing. Terminal printing is when the host sends data directly to the clients printer. It is sometimes also referred to as pass-through printing.
Each of the three supported printers can be configued as Raw or GUI.
When Raw printing is configured, the print output is sent directly to the specified Printer Name. This can be set to the name of a printer device or the name of a spool file. An optional Printer Command can be specified; this will be executed upon completion of the print spooling.
An example of using the lpr command on a Linux PC to print your
job:
Printer Name: spooler0.txt
Printer
Command: lpr -Phplaserjet spooler0.txt
An example of using a device on a Windows PC to print your job:
Printer Name: \\SERVER1\HPLASERJET
Printer Command: blank
A special program, anitaprint.exe, is provide to spool print jobs on Windows platforms. Other platforms can use their standard spoolers (such as lp or lpr on Linux and Solaris).
If the Printer Name is preceed by a @ then the first line of that file is used to specify the print output filename.
When GUI printing is configured, the print output is interpreted in order to create a Java GUI page and then this page is sent to the printer. The control codes are a limited subset of HPPCL. A default format for the GUI page can be configured.

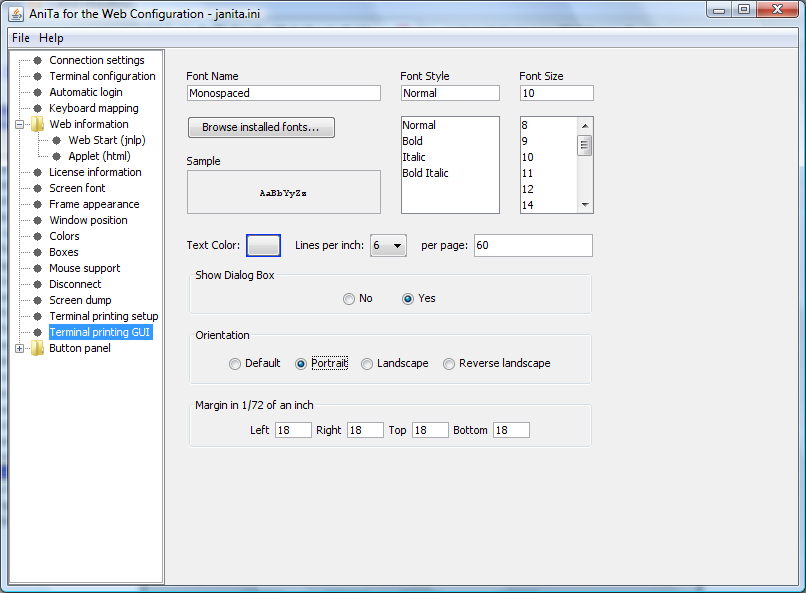

This screen controls the way that the emulator performs terminal GUI printing. It allows the user to configure the default format of the Java GUI page used for printing.

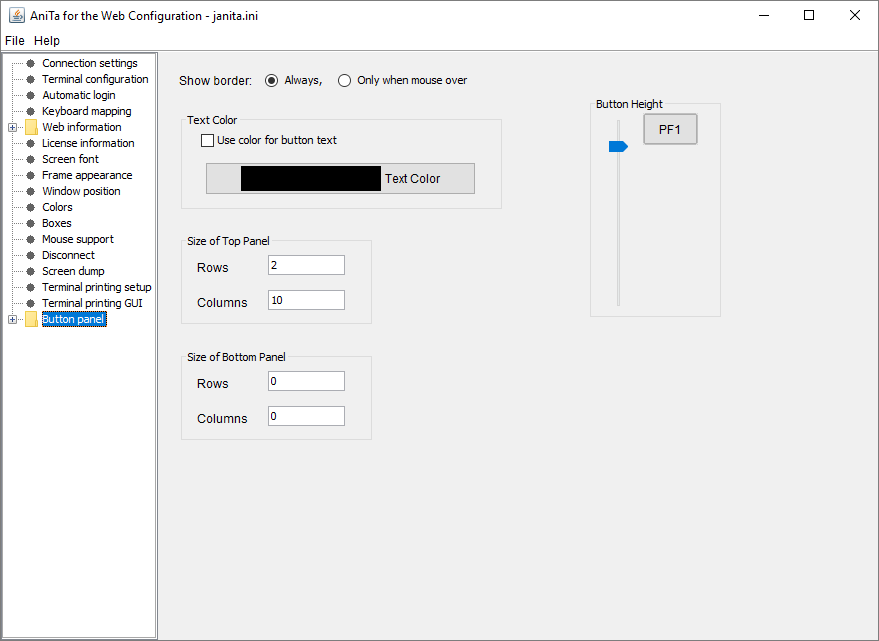

This screen controls the button panels above and below the AniTa terminal emulation window. You can configure a top button panel above the AniTa terminal screen and a bottom button panel below it.
There are two screens that configure the contents of the top and bottom button panels.
Select the position of the button from the scroll box.
Enter a symbolic name for the button (if required).
Enter an icon to display in the button (if required).
Enter the text to display in the button (if required). The text can start with <html> and then contain HTML tags to control the text display.
Enter the the string to send when the button is pressed (if required). The string may contain mnemonics and macros. The "View predefined keys" and "View predefined macros" buttons can help with this task.
Enter the tool-tip to display when the mouse is paused over the button (if required).
Note that a button without any icon or text values will create an empty space in the button panel.
This chapter describes some of the special functions when running the AniTa for the Web emulator.
This
button is used to connect or disconnect the session to the host. When
connected it shows a green telephone and the text "disconnect";
pressing will disconnect the session. When disconnected it shows a
red telephone and the text "connect"; pressing will connect
to the host. When in the process of connecting, it shows a yellow
telephone and the text "connecting"; pressing will have no
effect.
This
button is used to send the contents of the terminal screen to the
printer.
These
buttons are used to copy data to and from the clipboard. The copy
button will copy data from the terminal screen to the clipboard; it
is only enabled when an aera of the screen has been marked with the
mouse. The paste button will paste data from the clipboard into the
emulator as if it had been entered on the keyboard and thus send it
to the host; it is only enabled when a session is active.
This
button is used to start the AniTa for the Web configuration program
in a seperate Window. It is only enabled when running as an
application, and cannot be used when running from the web (either
using Web Start or as an applet). If the configuration file is
changed, the terminal emulator must be restarted for it to take
effect.
Sometimes
when a problem occurs running an application in AniTa, the resolution
can best be determined by creating a trace file. This trace file
contains the all communications between the host computer and AniTa.
To record the communications in a trace file, press the record button. Enter the name of the file into which the session will be recorded; the default is janita.trc. The button will change to stop recording.
Connect to the host system and login. Start the application and reproduce the problem so that it appears on the screen.
Press the stop recording button. This trace file will contain all the characters and escape sequences sent by the host to AniTa and all the keyboard input sent by AniTa to the host.
If you are using this file to report a problem to support, please send the AniTa configuration file "janita.ini" as well as the "janita.trc" file. This will enable support staff to play back your recording, using you same configuration and see the problem as it appears on your screen. The Play button is used to play back a trace file.
The toanita application can be used to send files from a UNIX host to the client computer via the AniTa for the Web terminal connection. These can be binary files such as icons or text files.
The toanita file transfer protocol make file transfers
easy to implement while still maintaining very high performance.
It has no error recovery.
This means that if the transfer is interrupted, the file should be
re-transmitted from beginning.
Host side software is free.
It is available both in various host-side executales as well as in
C-source code that compiles on all platforms.
Toanita can be downloaded from the AniTa Internet sample folder.
See ftp://ftp.aprilsystem.com/pub/anita/Sample/toanita/
To run this program enter the following command line from an AniTa terminal session:
| toanita filename |
| toanita [options] unixfilename [pcfilename] |
| -a 1 | enable acks, defaults to disabled. | |
| -b size | block size, defaults to 2048. | |
| -H | when using AniTa in HP emulation mode. | |
| -h | show help information. | |
| -t | Text mode (converts lines ending with LF to CR LF). |
| toanita helpicon.bmp | |
| toanita payable.hot anita.hot | |
| toanita -t -b 1024 -a 1 file.txt file.text |
A programmer's guide for AniTa for the Web which includes programming tips and AniTa specific escape sequences is provided as a seperate document: janitaprog.html.
